AH16DCR-R32-A

R32 ASHP Inverter-driven precise temp. control, Ultra-low temperature heating at -25°C.Support SG Ready and PV Ready system to reduce costs. Real Multilingual HMI controller with advanced function for intuitive operation. Real-time energy management provide data to optimize energy usage and costs .Smart WIFI APP predictive heating/cooling, remote control to pre-warm or pre-cool in advance. Save energy, save money, and conserve Earth's resources!

CATEGORY:R32 Heat Pump Series

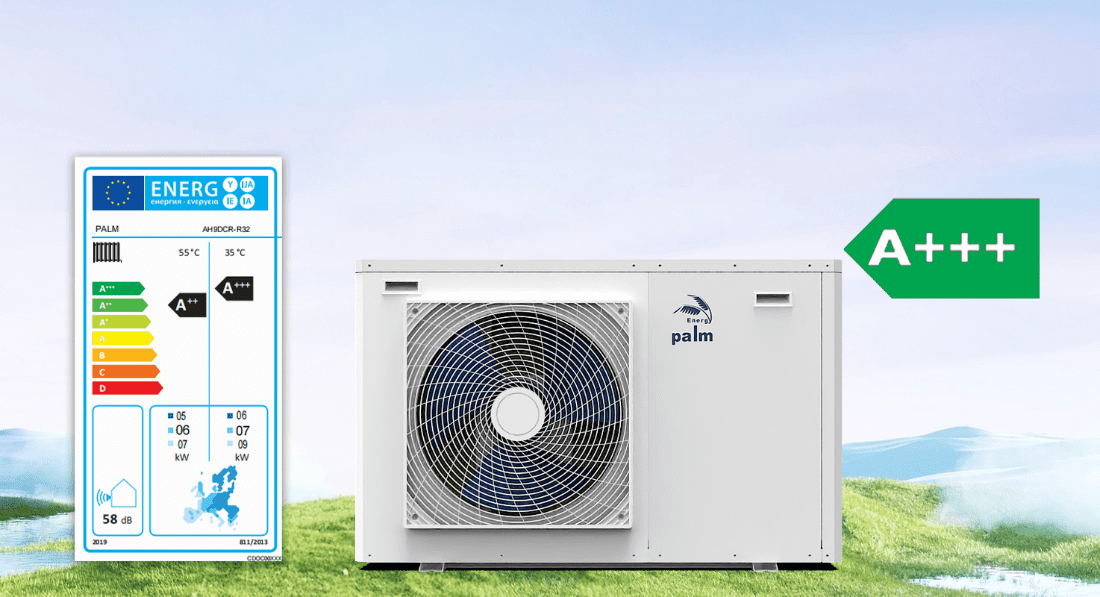

·High Efficiency A+++ Level

This heat pump boasts an A+++ energy efficiency rating, delivering high-performance operation that significantly reduces energy consumption and costs. It saves on energy expenses while contributing to environmental protection, making it the ideal choice for both efficiency and comfort.

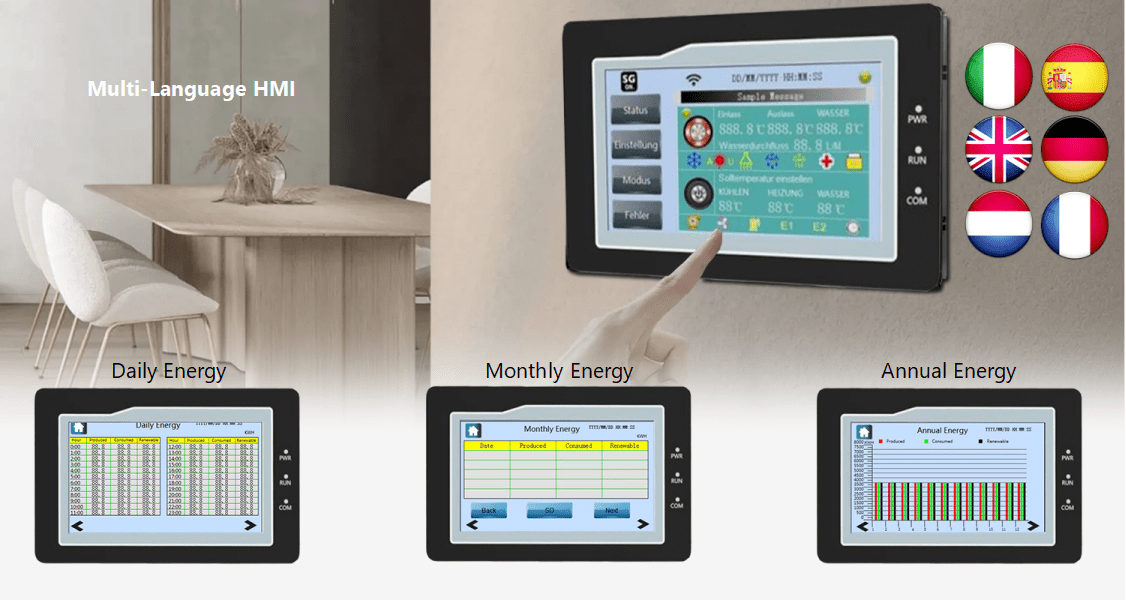

·Multi-language HMI

The intelligent multilingual controller with RS485 communication is used to enable linkage control between the heat pump unit and the terminal device. With the cascade function, multiple heat pumps can be controlled simultaneously, enhancing overall operational efficiency. Additionally, the WIFI app allows users to control the system via their smartphones anytime and anywhere.

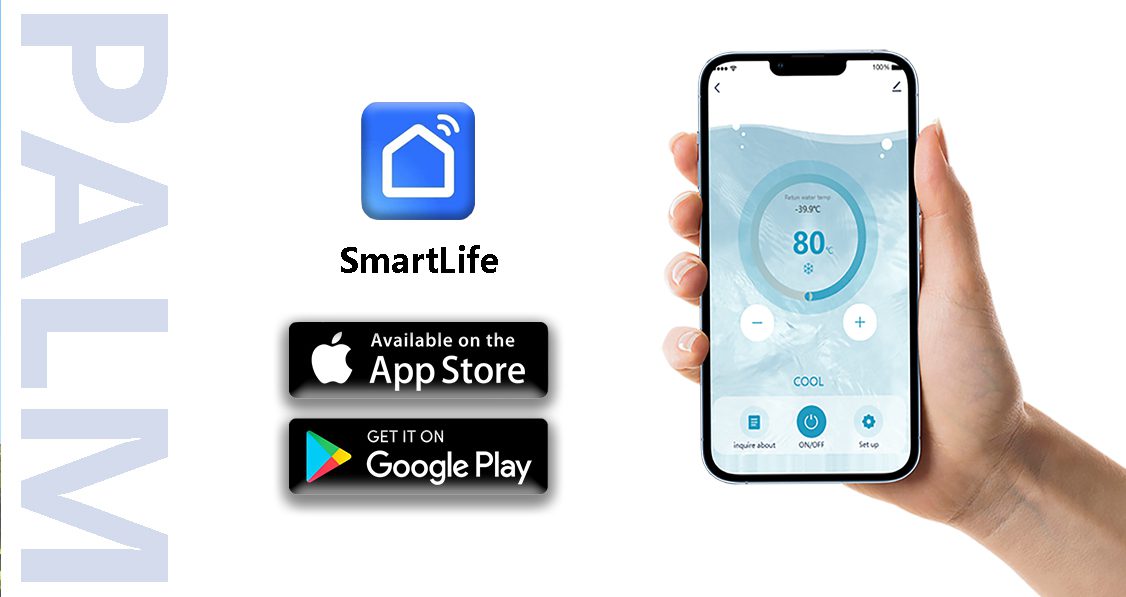

·Support WIFI App Controller

Our heat pumps support exclusive mobile phone APP connection, allowing you to remotely control, adjust the temperature, and receive maintenance reminders anytime, anywhere. Smart operation is simple and intuitive, allowing you to easily master the home environment and enjoy an efficient and comfortable life. Technology makes everything more convenient and secure.

·Max Outlet Water Temp Up to 60℃

Our heat pumps use advanced technology, with a maximum water outlet temperature of 60°C, providing you with stable and sufficient hot water even in the cold winter. The efficient and energy-saving design not only reduces operating costs, but also ensures a comfortable experience all day long, allowing you to enjoy warmth and convenience even in the cold season.

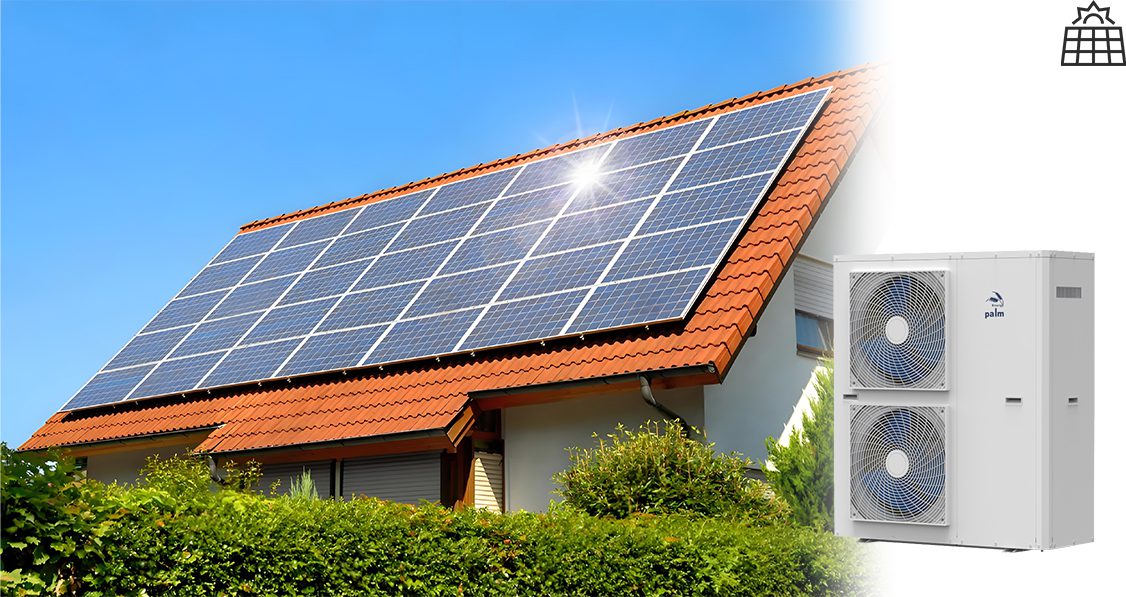

·Compatible with Solar Panel

Our heat pump innovatively integrates with solar panel systems, harnessing natural energy for operation. By efficiently combining solar power with the heat pump, it significantly reduces electricity consumption and further decreases reliance on traditional energy sources, achieving a more eco-friendly and sustainable energy solution. Enjoy a comfortable lifestyle while contributing to the protection of our planet.

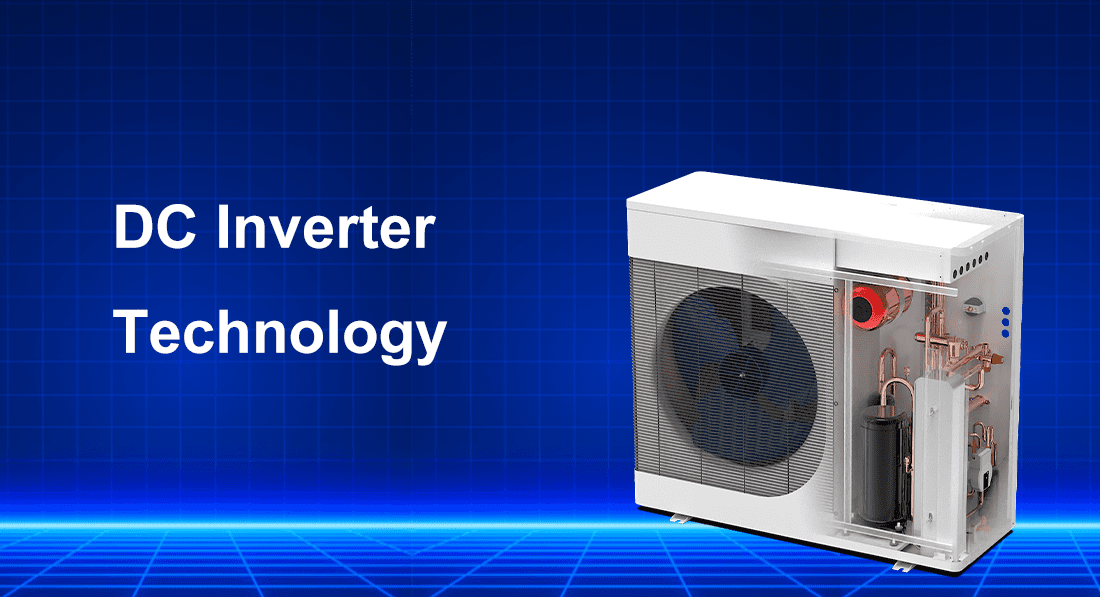

·DC Inverter Technology

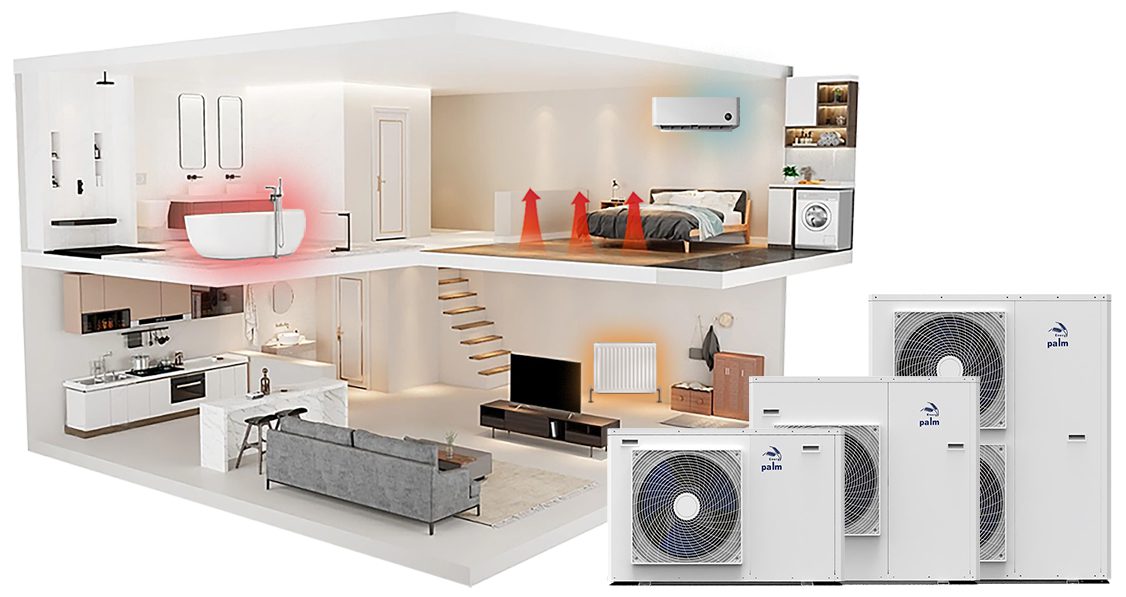

·Five Working Modes

Mode 1 Domestic Hot Water(DHW): Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.

Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.

Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.

Mode 4 DHW + House Cooling: Meet the Requirements of Both Domestic Hot Water and Air Conditioning.

Mode 5 DHW + House Heating: Meet the Requirements of Both Domestic Hot Water and Room Heating.

·Applications

Swimming Pool/Hotel/Villa/Apartment/Household etc…


R32 DC inverter Air to Water Heat Pumps Specification
Models				AH6DCR-P32	AH9DCR-P32	AH12DCR-P32	AH14DCR-P32	AH16DCR-P32	AH19DCR-P32
Electric supply			V/Hz	230V/50-60Hz
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 20℃;
Heating capacity			KW	8.44	12.1	16.32	18.76	21.88	25.4
Power input			KW	1.41	2.02	2.77	3.47	3.66	4.5
COP			W/W	5.99	5.99	5.89	5.41	5.98	5.64
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 7℃;
Heating capacity			KW	6.21	8.9	12	13.9	16.3	18.936
Power input			KW	1.26	1.81	2.5	3.13	3.34	4.265
COP			W/W	4.93	4.92	4.8	4.44	4.88	4.44
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 7℃;
Heating capacity			KW	5.91	8.46	11.29	13.11	15.31	17.78
Power input			KW	1.48	2.12	3.08	3.67	3.88	4.75
COP			W/W	3.99	3.99	3.67	3.57	3.95	3.74
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 2℃;
Heating capacity			KW	5.56	7.97	10.8	12.42	14.49	16.8
Power input			KW	1.22	1.76	2.44	3.06	3.23	3.97
COP			W/W	4.56	4.53	4.43	4.06	4.49	4.23
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 2℃;
Heating capacity			KW	5.32	7.61	10.16	11.8	13.78	16
Power input			KW	1.45	2.07	3.01	3.6	3.8	4.65
COP			W/W	3.67	3.68	3.38	3.28	3.63	3.44
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacity			KW	6.1	8.1	11.2	11.3	15.6	16.6
Power input			KW	1.53	2.08	3.01	3.08	4.3	4.55
COP			W/W	3.99	3.89	3.72	3.67	3.63	3.65
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacity			KW	4.9	5.9	8.1	9.5	11.4	12
Power input			KW	1.65	2	2.83	3.7	4	4.2
COP			W/W	2.97	2.95	2.86	2.57	2.85	2.86
SCOP			/	4.65	4.65	4.69	4.69	4.55	4.55
Compressor			/	Mitsubishi
Max.currentt			A	12.5			15			25
Max.water temperature			℃	60
Running temperature range			℃	-25 ~ 43
Refrigerant circuit	compressor(s)	/	Twin Rotary
		Heat exchange	/	Copper and Hydrauphilic Aluminum Fin
		Air flow	m³/h	2100	2400	2900	3100	5600	5600
Water circuit	Heat exchanger	/	Plate heat exchanger
		In/Out pipe	/	DN25(1'')	DN25(1'')			/	DN32
		Water flow	m³/h	≥0.8	≥1.2	≥1.8	≥2.0	≥2.3	≥2.3
		permitted pressure	/	≤0.8MPa
Net weight			kg	90	90	105	110	140	140
Gross weight			kg	102	102	115	120	150	150
Unit dimensions(WHD)			mm	1115710425			1115960425			11151280425
Pacage dimensions(WHD)			mm	1160860520			11601110520			11601440520
Noise level			dB(A)	46	46	50	52
Loading quantity for 20'/40'			/	44/88							22/44

The above modle is optional for multifunction (Room heating, cooling and domestic hot water in one solution) with extra cost of USD100.
