MQD-8
Split type heat pump design can better avoid freezing problems. The system will implement automatic anti-freezing protection by detecting system water temp. Ultilize DC inverter technology for intelligent constant temp.control,reducing overall operation costs.compatible with radiators ,floor heating, fan coils and other terminals to creat to comfortable and healthy living environment.
CATEGORY:Split Heat Pump Series

  • Advantages

1. Use environment-friendly refrigerant R410a or R32.

2. Working stably at cold climate, even at minus 25 ℃.

3. Muiti-Language controller (English, Franch,Germany,Italian,Spanish,Dutch).

4. With WIFI controlling, can be remoted by App.

5. 3 in 1 function of Heating/cooling/DHW, and mixed mode Heating +DHW, Cooling+DHW

DC INVERTER TRITHERMA DC multifunctional split heat pump Specification
Model.MQD-8DCMQD-15DC
HeatingcapacityKW7.7214.80
power inputKW1.69

3.45

COPKW/KW4.574.29
coolingcapacityKW8.5415.00
power inputKW2.184.26
EERKW/KW3.923.52
Domestic Hot WaterCapacityKW7.1513.60
Power InputKW2.003.79
COP/3.583.59
Power supplyV/Ph/Hz230/1/50

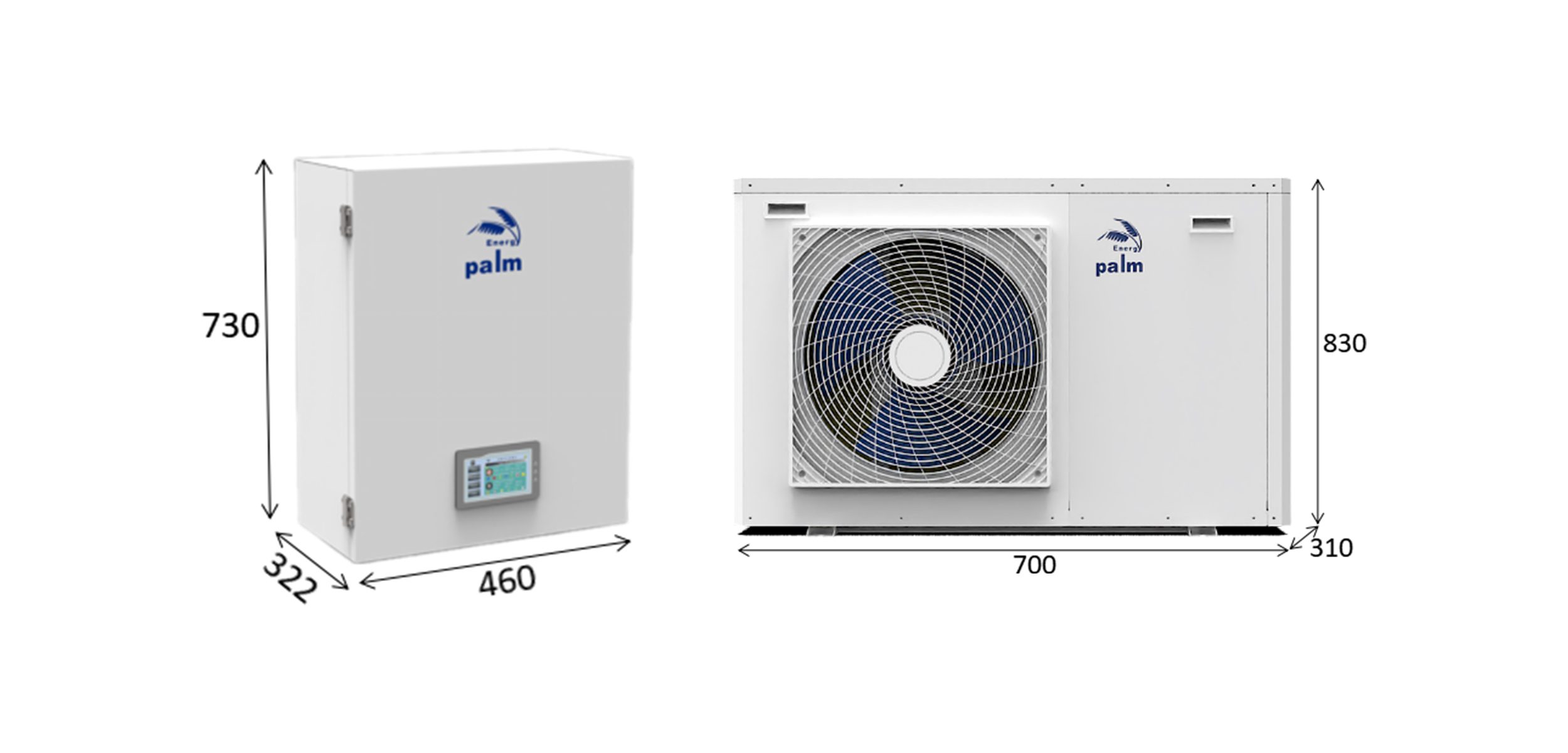

Dimension(H*W*D)
(Indoor unit)		MM730*460*322
Dimension(H*W*D)MM830x700x310960*970*345
WeightIndoor unitKG5355
Outdoor unitKG62100
Refrigerant/R410a
Noise LevelIndoor unitDB(A)26
Outdoor unitDB(A)4248
Recommand additional water tank for
Domestic Hot Water(not included in price)		L>100>150
Test Condition:
Heating:
Inlet/outlet water temp：30°C/35°℃.Wet/dry bulb air temp：6℃/7C.
Cooling:
Inlet/outlet water temp：23°C/18℃.air temp：35℃.
Domestic hot water:
Outlet water temp：45°C.Wet/dry bulb air temp：6°℃/7°C.
