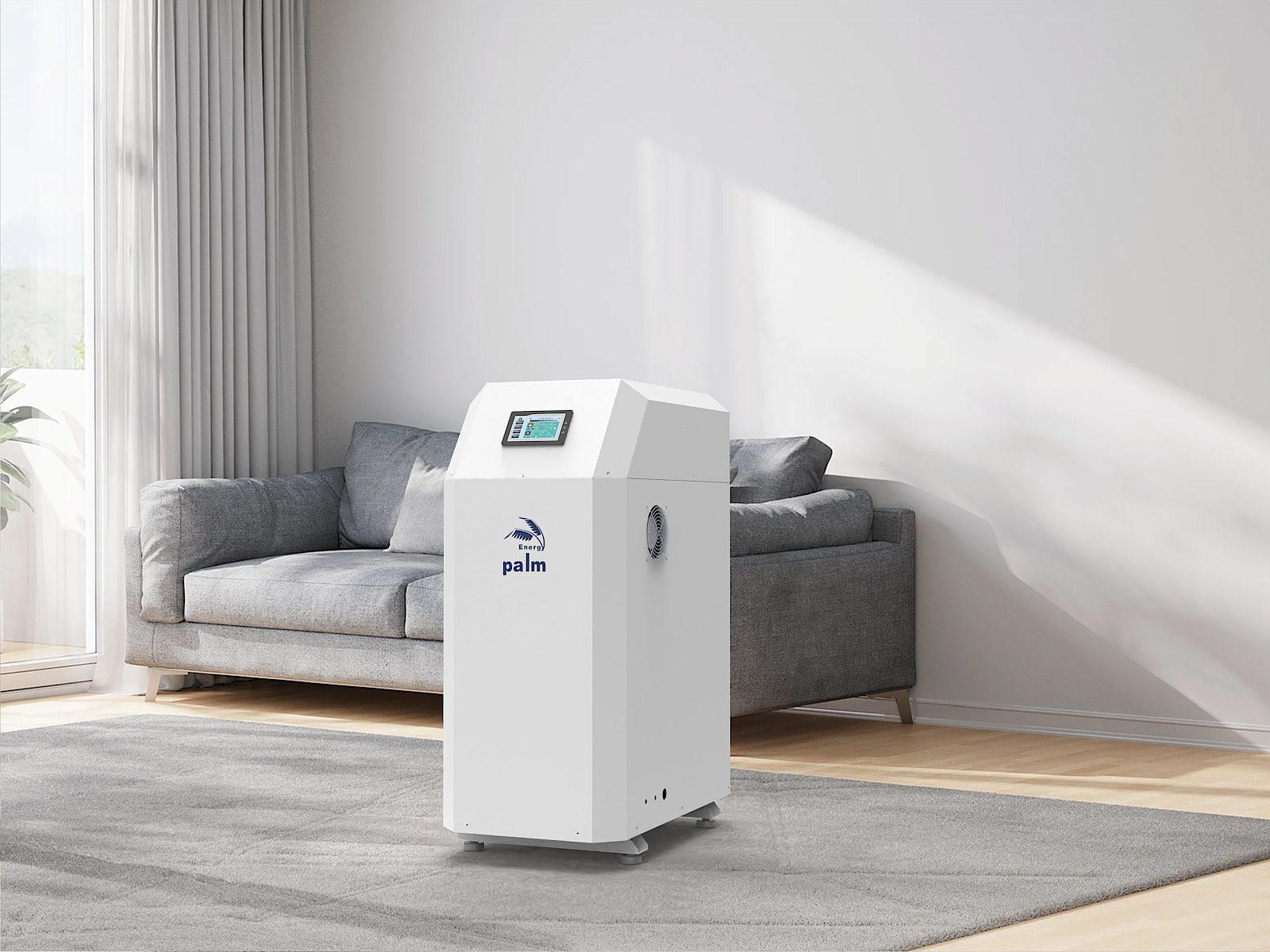

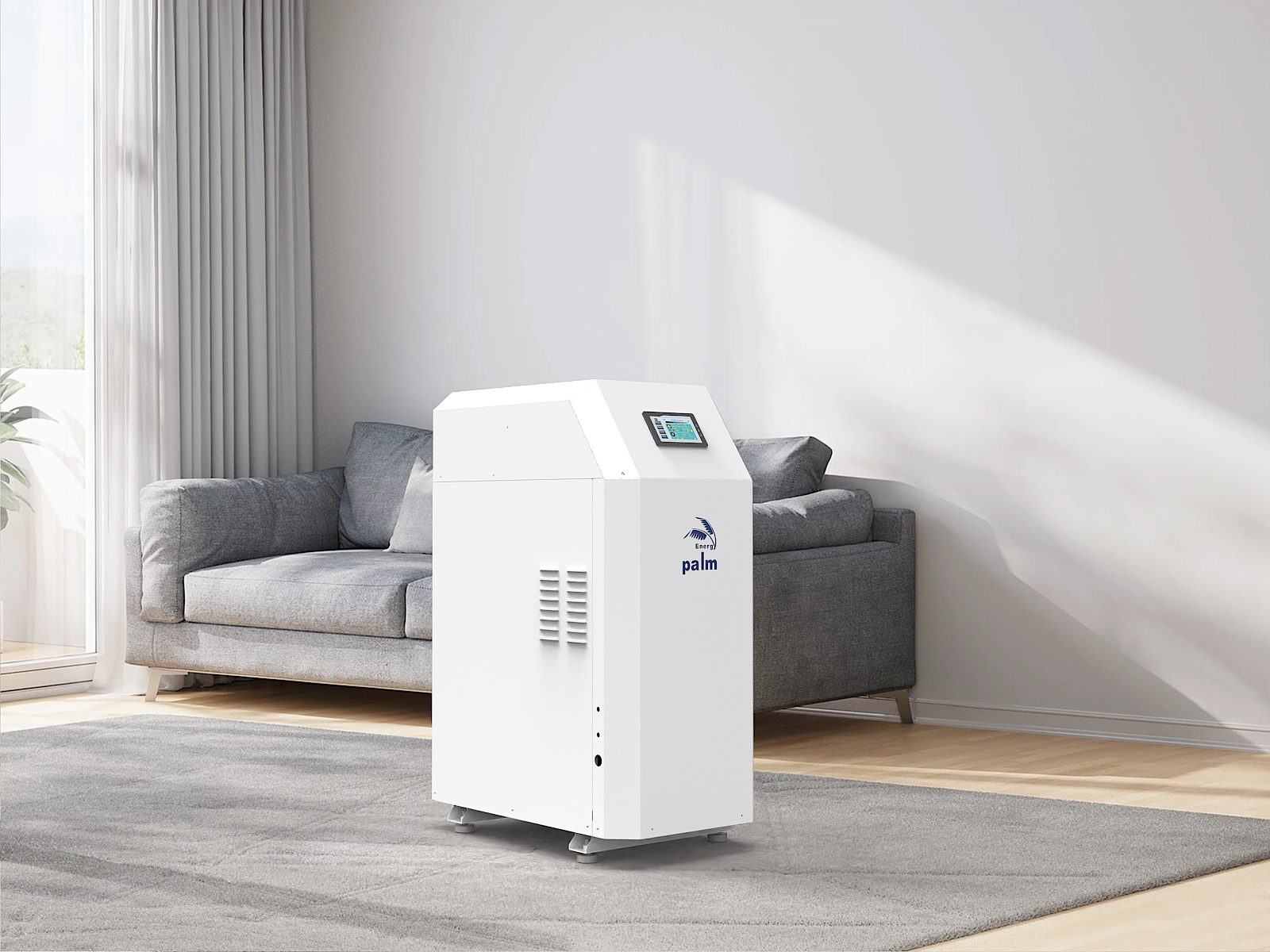

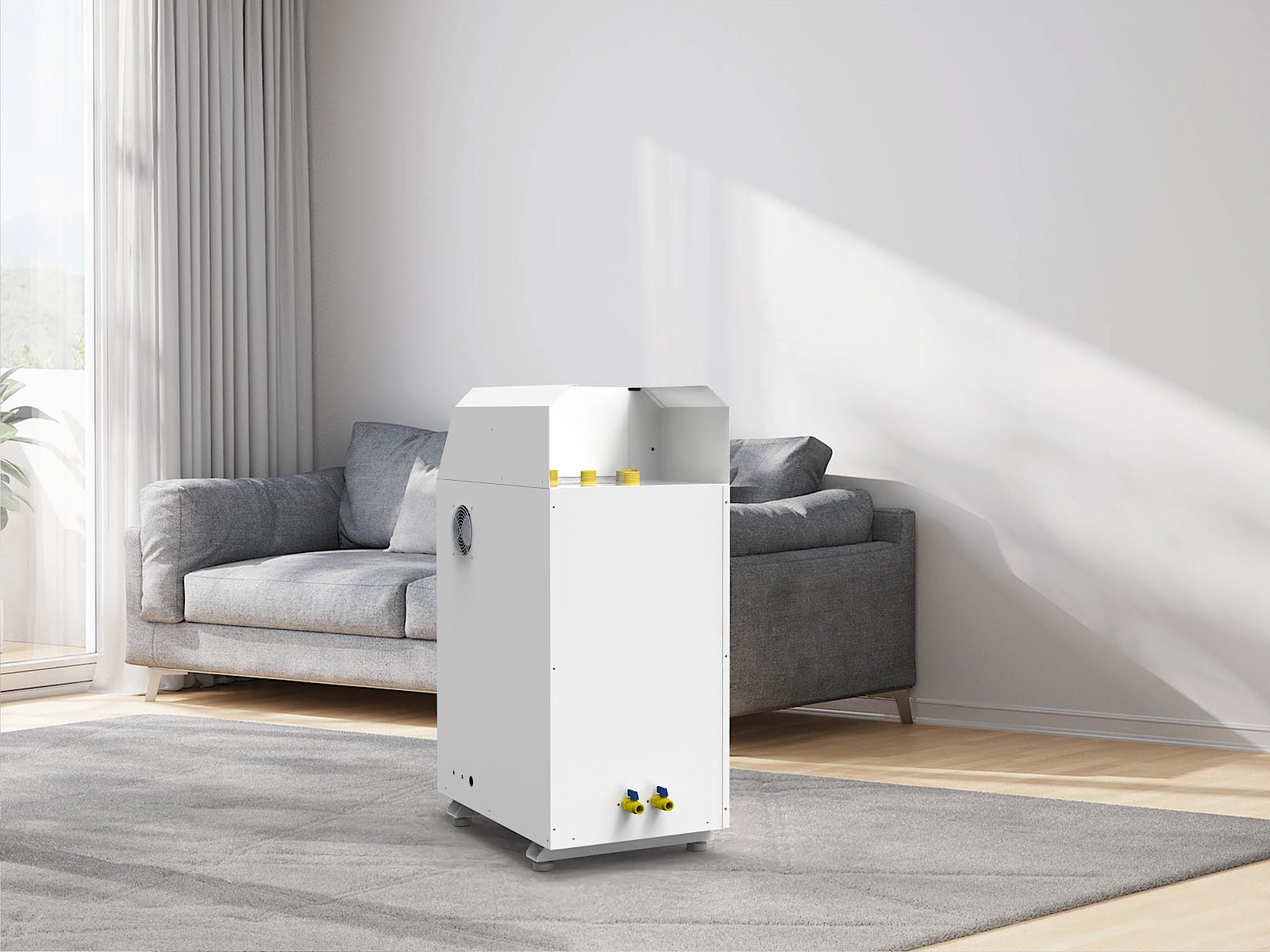

GH-8HC-410DC
Advanced Variable Frequency Technology with R32/R290 ground source heat pump circulation for silent, constant comfort.A+++ energy efficiency, SCOP >7.2 – Experience a 30% leap in energy performance for greater electricity savings and effortless convenience! Enable the SG Ready. WIF remote control to pre-warm or pre cool in advance. Brave extreme temperatures from -30℃ to 50℃ without compromise!
CATEGORY:Ground Source Series
·Product Advantages
1.High Efficiency A+++ Level.
2.Compatible with Solar Panel.
3.Max Outler Water Temp Up to 60℃.
4.Smart WIFI APP Support.

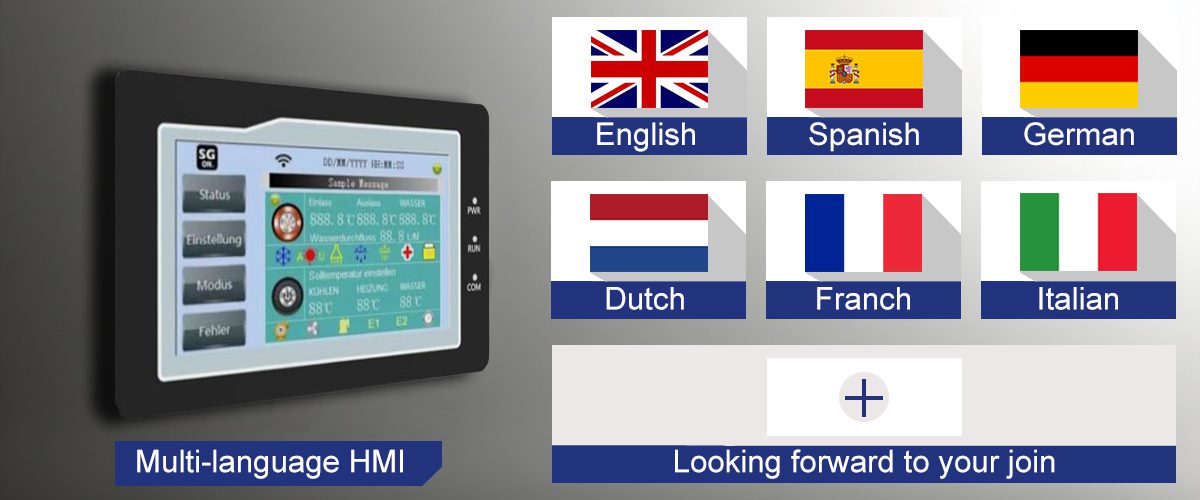

5.Multi-language Controller.

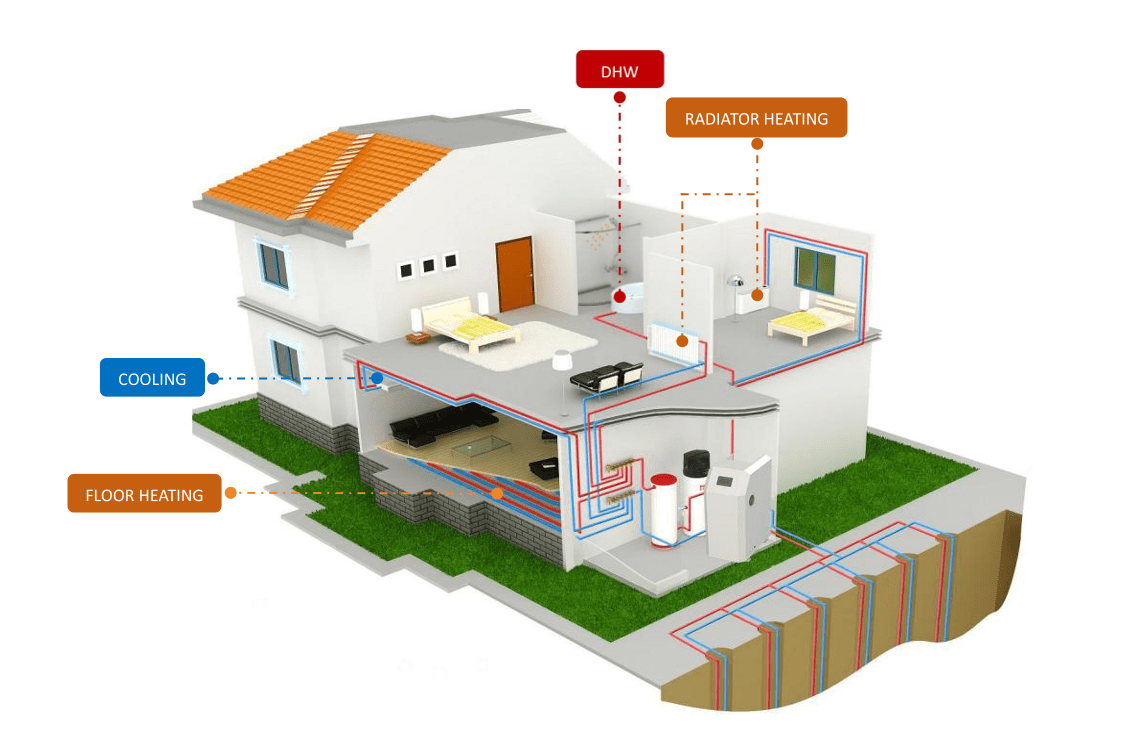

·5 Working Modes
Mode 1 Domestic Hot Water(DHW): Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.
Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4 Hot Water + House Cooling: Meet the Requirements of Both Domestic Hot Water and Air Conditioning.
Mode 5 Hot Water + House Heating: Meet the Requirements of Both Domestic Hot Water and Room Heating.
·Application
| Model No | GH-2 | GH-5 | GH-8 | GH-11 | GH-15 | GH-17 | GH-19S | GH-25S | GH-30S | |
|---|---|---|---|---|---|---|---|---|---|---|
| Heating （W10℃/W35℃） | ||||||||||
| Nomical Capacity | KW | 2 | 4.5 | 8.17 | 10.95 | 14.55 | 16.6 | 18.81 | 25.55 | 30 |
| Power Input | KW | 0.44 | 0.92 | 1.83 | 2.2 | 3.36 | 3.37 | 3.75 | 5.2 | 6.1 |
| COP | KW/KW | 4.55 | 4.89 | 4.46 | 4.98 | 4.33 | 4.93 | 5.02 | 4.91 | 4.92 |
| Heating （B0℃/W35℃） | ||||||||||
| Nomical Capacity(B0° C/W35°C) | KW | 1.7 | 3.2 | 7.2 | 9.1 | 12.2 | 13.4 | 15.1 | 21 | 25.4 |
| Power Input | KW | 0.42 | 0.8 | 1.8 | 2.25 | 3.12 | 3.25 | 3.5 | 4.8 | 5.8 |
| COP | KW/KW | 4.05 | 4 | 4 | 4.04 | 3.91 | 4.12 | 4.31 | 4.38 | 4.38 |
| Cooling | ||||||||||
| Nomical Capacity | KW | 2.1 | 4.1 | 9.64 | 12.35 | 15.09 | 16.9 | 18.88 | 25.3 | 30.5 |
| Power input | KW | 0.46 | 0.91 | 1.81 | 2.29 | 3.67 | 3.7 | 4.32 | 5.2 | 6.2 |
| EER | KW/KW | 4.57 | 4.51 | 5.33 | 5.39 | 4.11 | 4.57 | 4.37 | 4.87 | 4.92 |
| COP for heat recovery model | KW/KW | 7.3 | 7.52 | 7.83 | 8.3 | 6.75 | 7.6 | 7.51 | 7.82 | 7.87 |
| Pow er Supply | 220-230V/50HZ/60HZ | 380-415V/50hz | ||||||||
| Max Output water temp | C | 60 | ||||||||
| Mini water flow(Water Source side) | Litre/Hour | 340 | 680 | 1000 | 1750 | 2400 | 3000 | 3000 | 4300 | 5200 |
| Mini water flow(Heat pump side) | Litre/Hour | 340 | 680 | 1000 | 1750 | 2400 | 3000 | 3000 | 4300 | 5200 |
| Water source side Diameter | mm | DN25 | DN20 | DN25 | DN32 | |||||
| Heatpump side diameter | mm | DN25 | DN20 | DN25 | DN32 | |||||
| Packing size(L*H*W) | mm | 600x880x410 | 700x1080*460 | |||||||
| Unit size(L*H*W) | mm | 550x760x350 | 650x960x400 | |||||||
| Protection class | / | IPx4 | ||||||||
| Anti Shock class | / | Class 1 | ||||||||
| Refrigerant | / | R410a | ||||||||
| Noise Level | dB | 22 | 23 | 29 | 30 | 31 | 32 | 34 | 36 | |
| Regulation component | / | Emersion expansion valve | ||||||||
| Condenser HX | / | Plate heat exchanger | ||||||||
| Evaporator HX | / | Plate heat exchanger | ||||||||
| Net weight | kg | 28 | 35 | 73 | 108 | 115 | 125 | 125 | 192 | 215 |
| Gross weight | kg | 33 | 39 | 78 | 113 | 120 | 130 | 130 | 197 | 220 |
| (B means brine, W means water) Test condition for Heating(W10°C/W35°C)： Outdoor inlet water temp 10°C, Indoor outlet water temp 35. Test condition for Cooling： Indoor inlet/outlet water temp.12°C/7°C.Outdoor inlet/outlet brine temp.30°C/35℃ | ||||||||||
