AH16DCR-32DC-CX
R32 ASHP Inverter-driven precise temp. control, Ultra-low temperature heating at -25°C.Support SG Ready and PV Ready system to reduce costs. Real Multilingual HMI controller with advanced function for intuitive operation. Real-time energy management provide data to optimize energy usage and costs .Smart WIFI APP predictive heating/cooling, remote control to pre-warm or pre-cool in advance. Save energy, save money, and conserve Earth's resources!

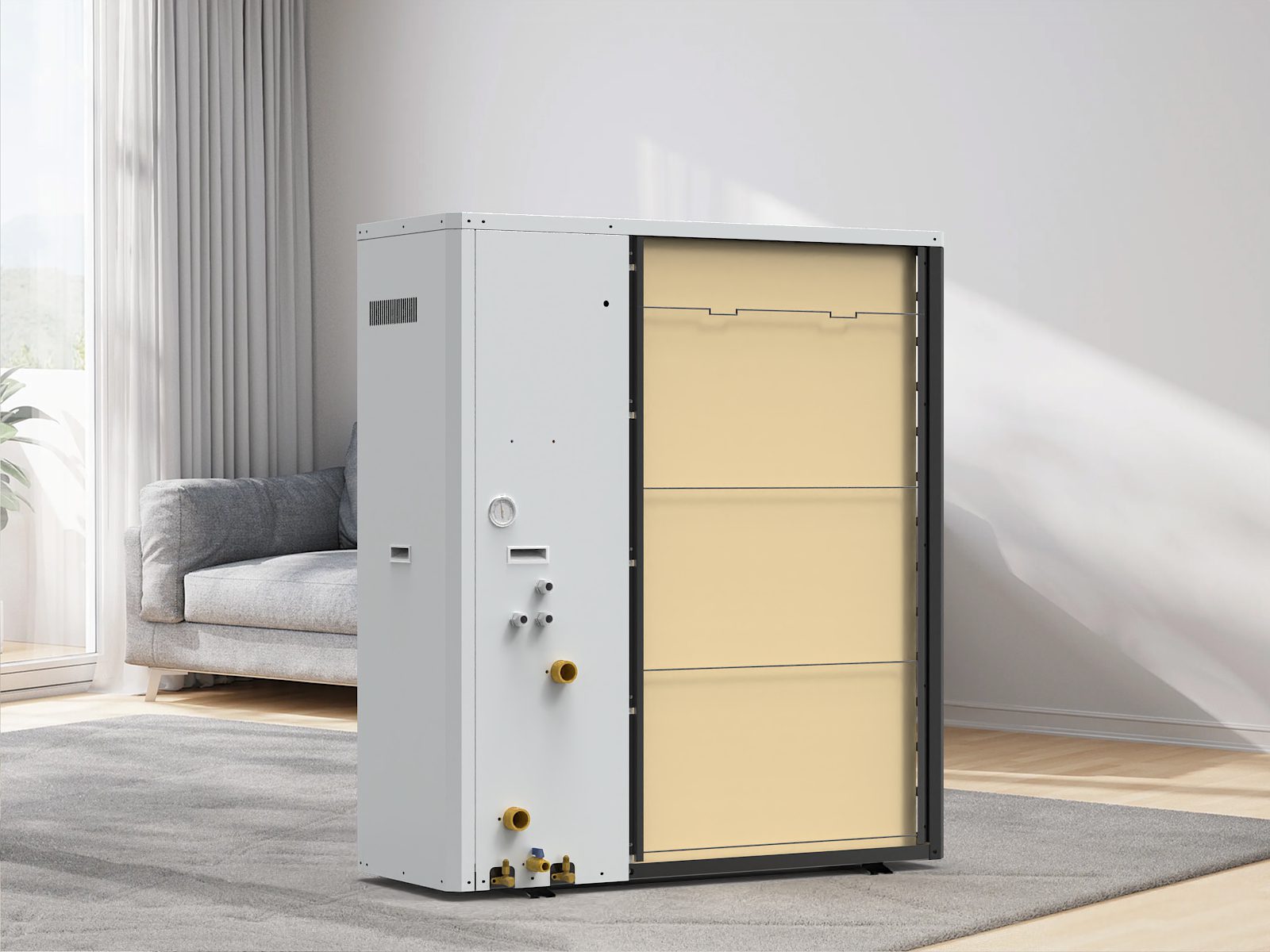

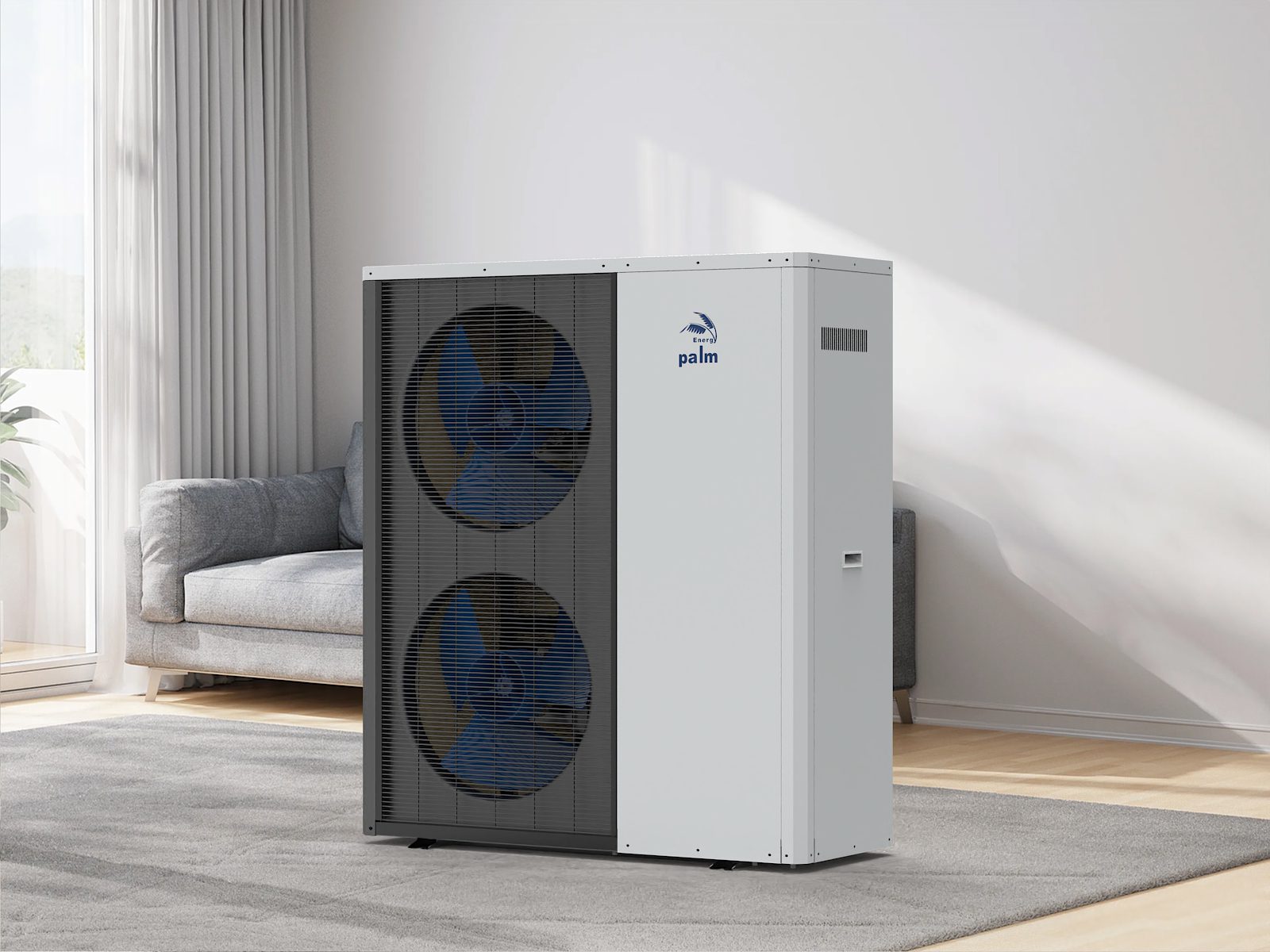

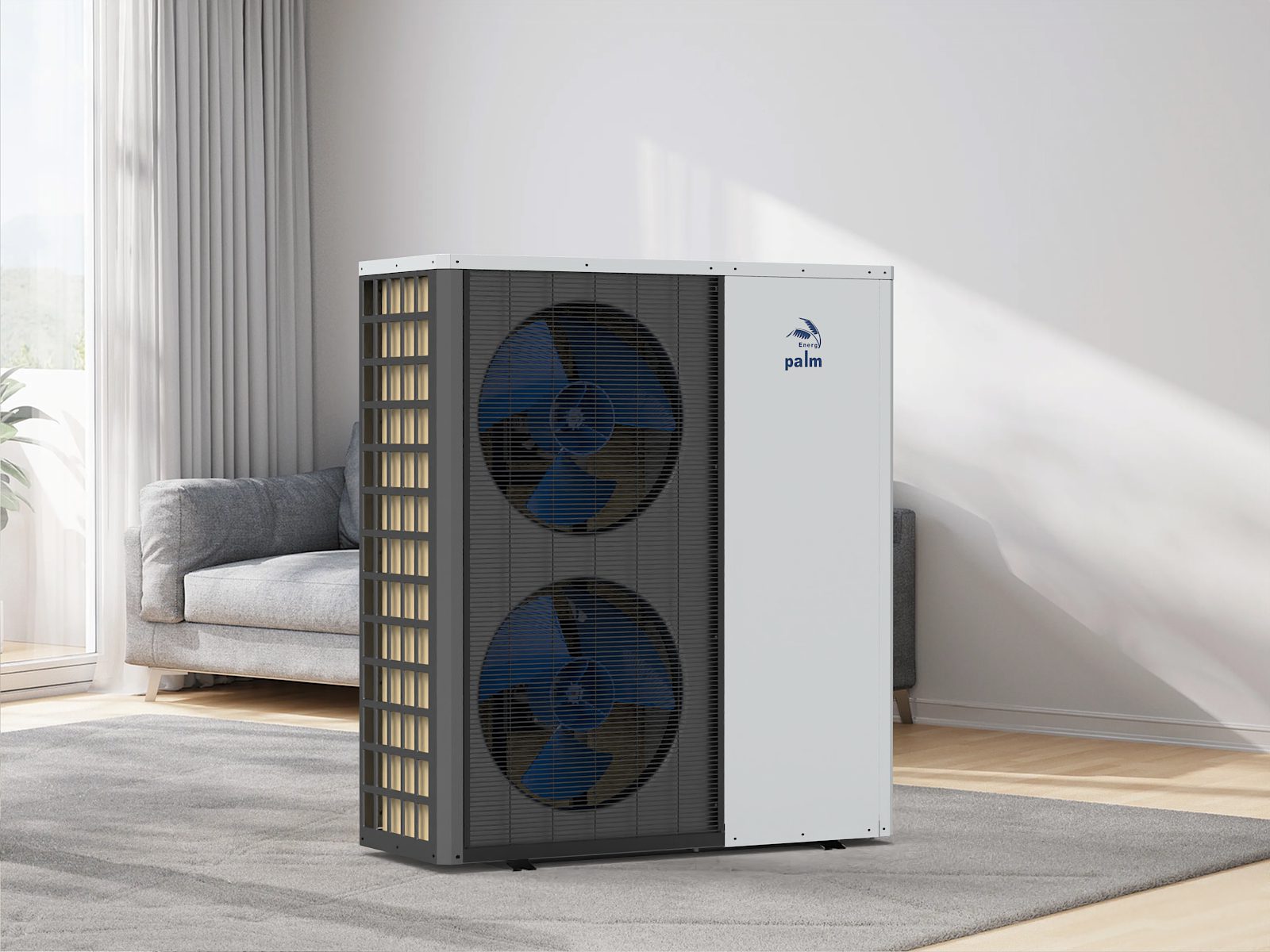

·Product  Images

·Advantages

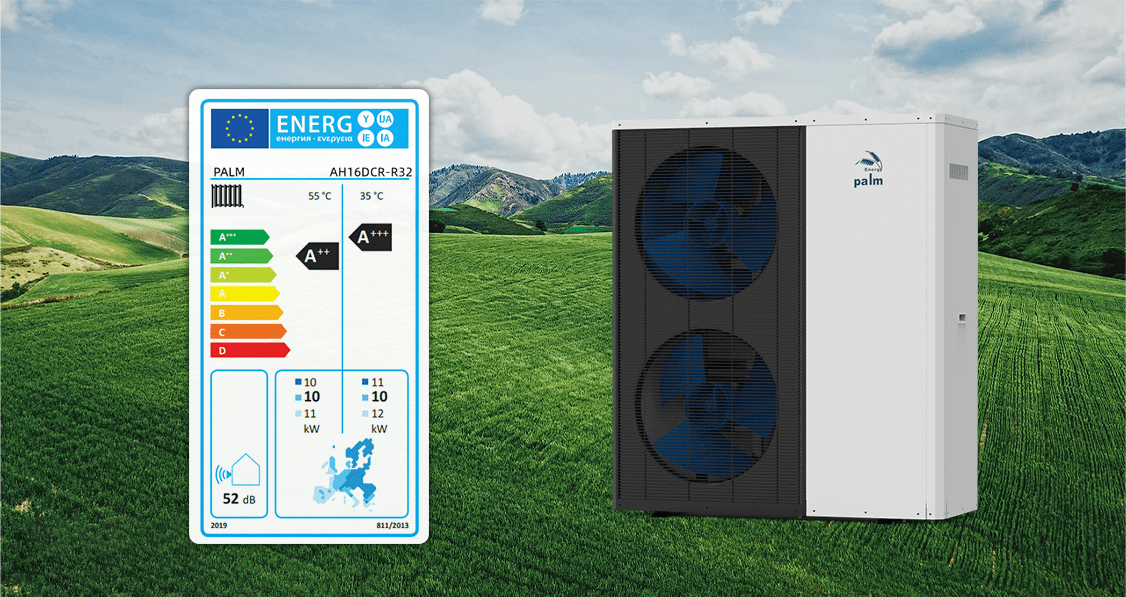

1.High Efficiency A+++ Level-More Saving Energy;

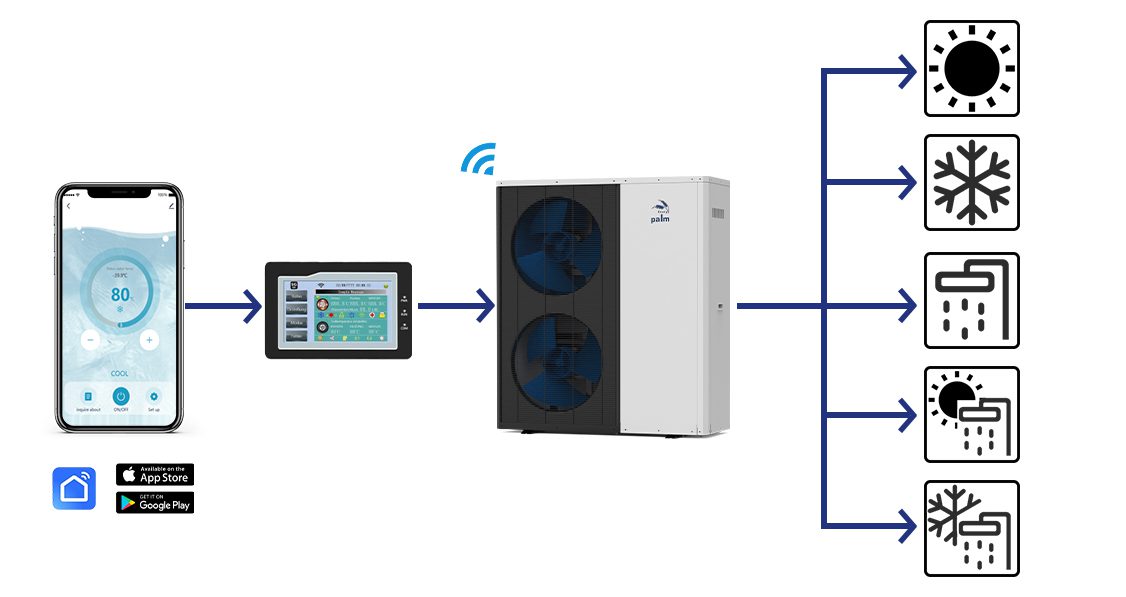

2.Support WIFI APP Controller-Make your life more convenient;

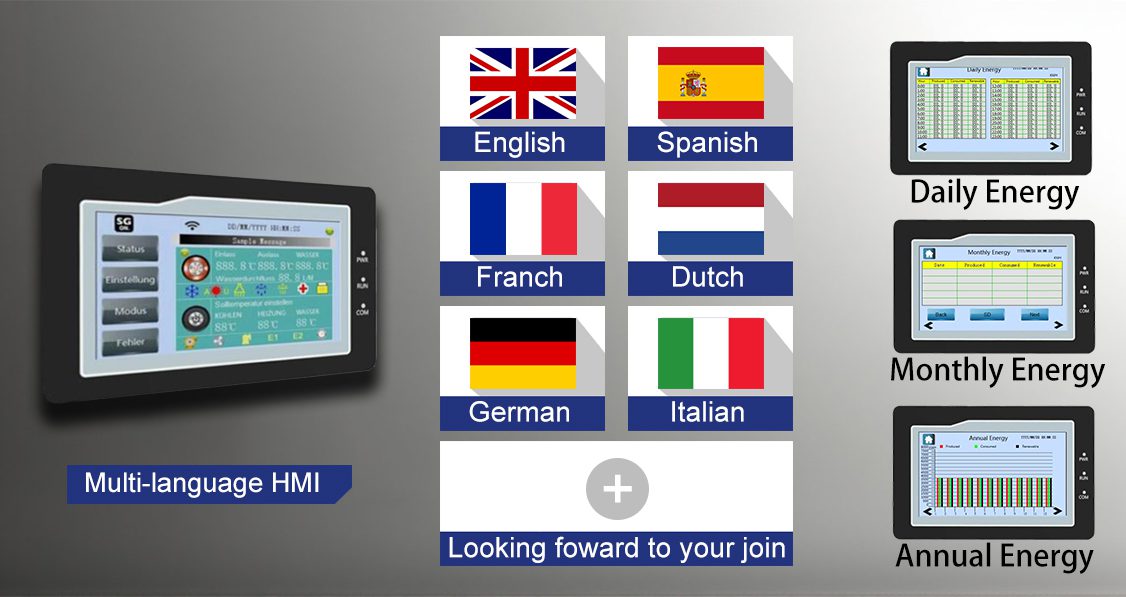

3.Multi-language HMI- More directly see your energy consumption;

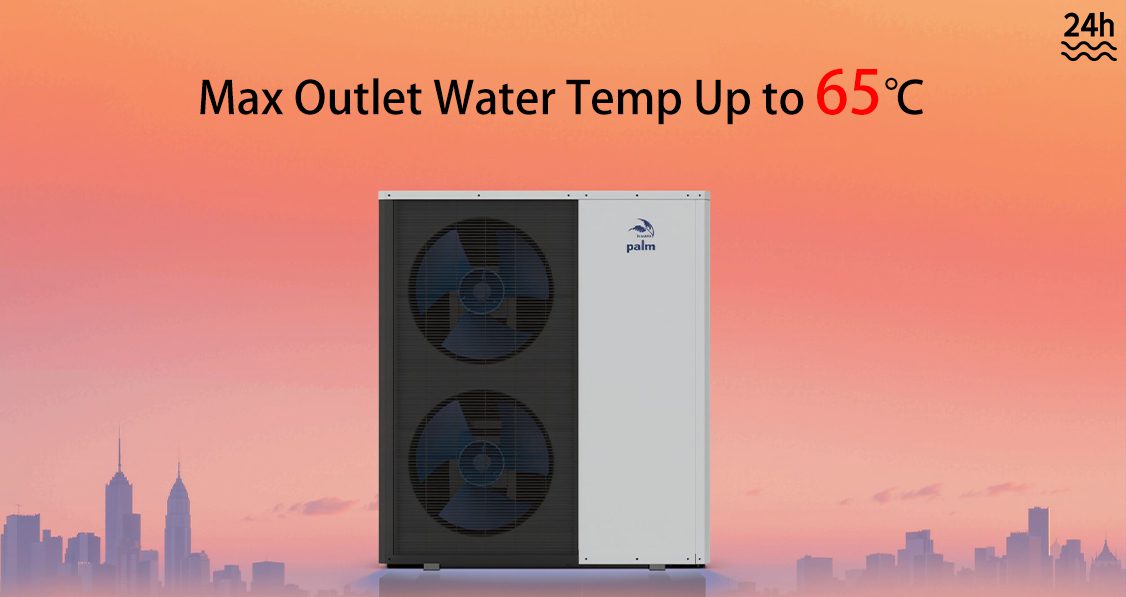

4.Max Outlet Water Temp Up to 65 ℃– Make warm in winter;

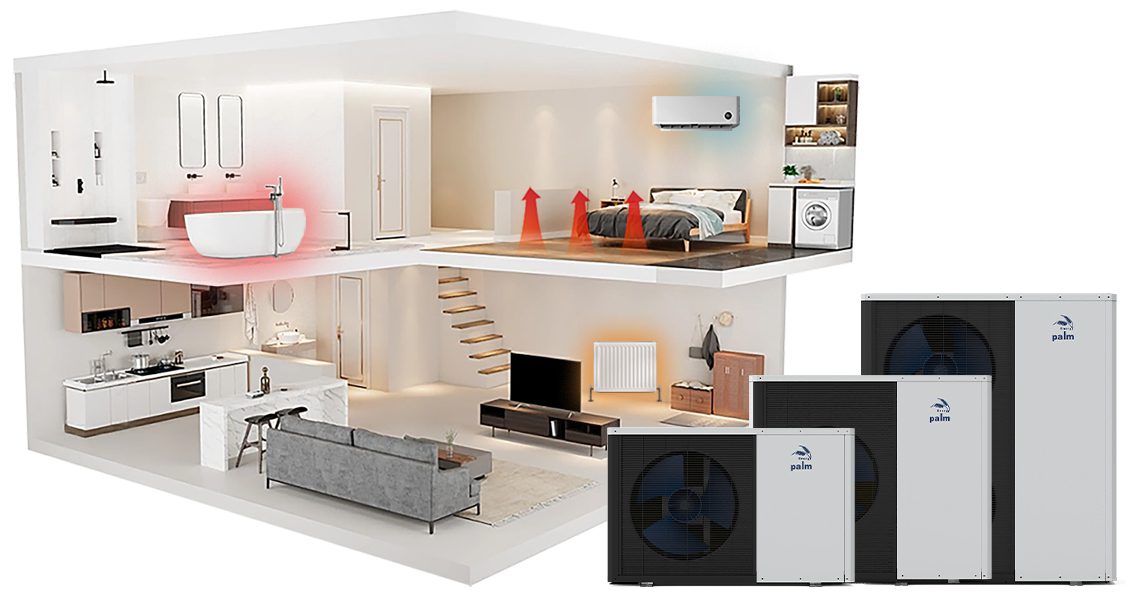

·Five Working Modes

Mode 1 Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.

Mode 2 Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.

Mode 3 Domestic Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.

Mode 4 Heating+DHW: Meet the Requirements of Both Domestic Hot Water and Room Heating.

Mode 5 Cooling+DHW: Meet the Requirements of Both Domestic Hot Water and Air Conditioning.

·Applications

Swimming Pool/Hotel/Villa/Apartment etc…

R32 DC inverter Air to Water Heat Pumps Specification
Models AH6DCR-P32AH9DCR-P32AH12DCR-P32AH14DCR-P32AH16DCR-P32AH19DCR-P32
Electric supplyV/Hz230V/50-60Hz
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 20℃;
Heating capacityKW8.4412.116.3218.7621.8825.4
Power inputKW1.412.022.773.473.664.5
COPW/W5.995.995.895.415.985.64
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 7℃;
Heating capacityKW6.218.91213.916.318.936
Power inputKW1.261.812.53.133.344.265
COPW/W4.934.924.84.444.884.44
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 7℃;
Heating capacityKW5.918.4611.2913.1115.3117.78
Power inputKW1.482.123.083.673.884.75
COPW/W3.993.993.673.573.953.74
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 2℃;
Heating capacityKW5.567.9710.812.4214.4916.8
Power inputKW1.221.762.443.063.233.97
COPW/W4.564.534.434.064.494.23
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 2℃;
Heating capacityKW5.327.6110.1611.813.7816
Power inputKW1.452.073.013.63.84.65
COPW/W3.673.683.383.283.633.44
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacityKW6.18.111.211.315.616.6
Power inputKW1.532.083.013.084.34.55
COPW/W3.993.893.723.673.633.65
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacityKW4.95.98.19.511.412
Power inputKW1.6522.833.744.2
COPW/W2.972.952.862.572.852.86
SCOP/4.654.654.694.694.55 4.55
Compressor/Mitsubishi
Max.currenttA12.51525
Max.water temperature60
Running temperature range-25 ~ 43
Refrigerant circuitcompressor(s)/Twin Rotary
Heat exchange/Copper and Hydrauphilic Aluminum Fin
Air flowm³/h210024002900310056005600
Water circuitHeat exchanger/Plate heat exchanger
In/Out pipe/DN25(1'')DN25(1'')/DN32
Water flowm³/h≥0.8≥1.2≥1.8≥2.0≥2.3≥2.3
permitted pressure/≤0.8MPa
Net weightkg9090105110140140
Gross weightkg102102115120150150

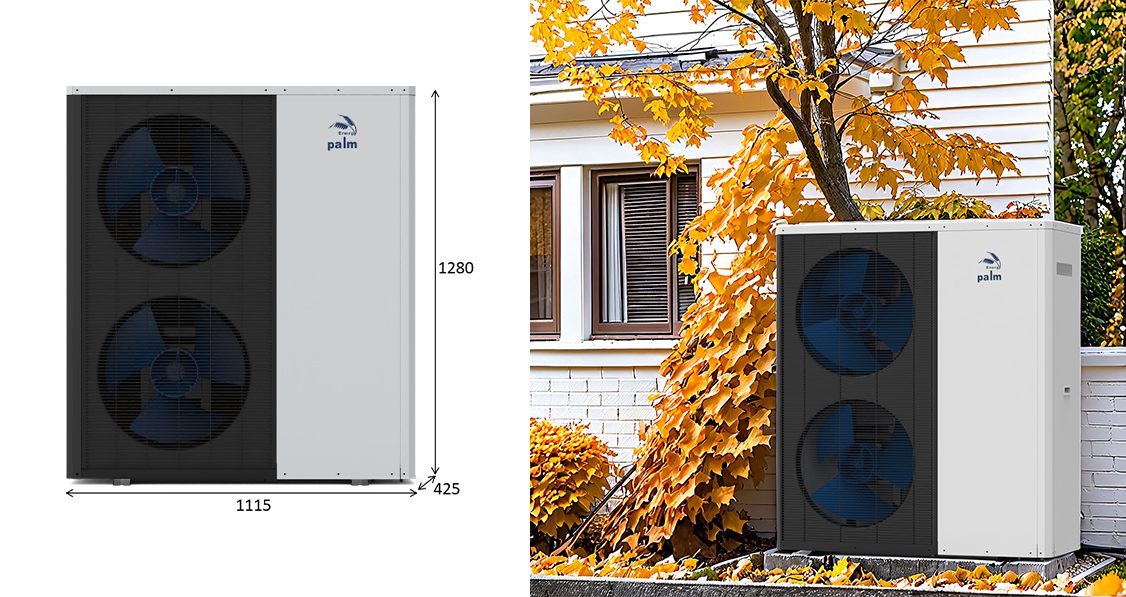

Unit dimensions(W*H*D)mm1115*710*4251115*960*4251115*1280*425
Pacage dimensions(W*H*D)mm1160*860*5201160*1110*5201160*1440*520
Noise leveldB(A)46465052
Loading quantity for 20'/40'/44/8822/44
The above modle is optional for multifunction (Room heating, cooling and domestic hot water in one solution) with extra cost of USD100.
