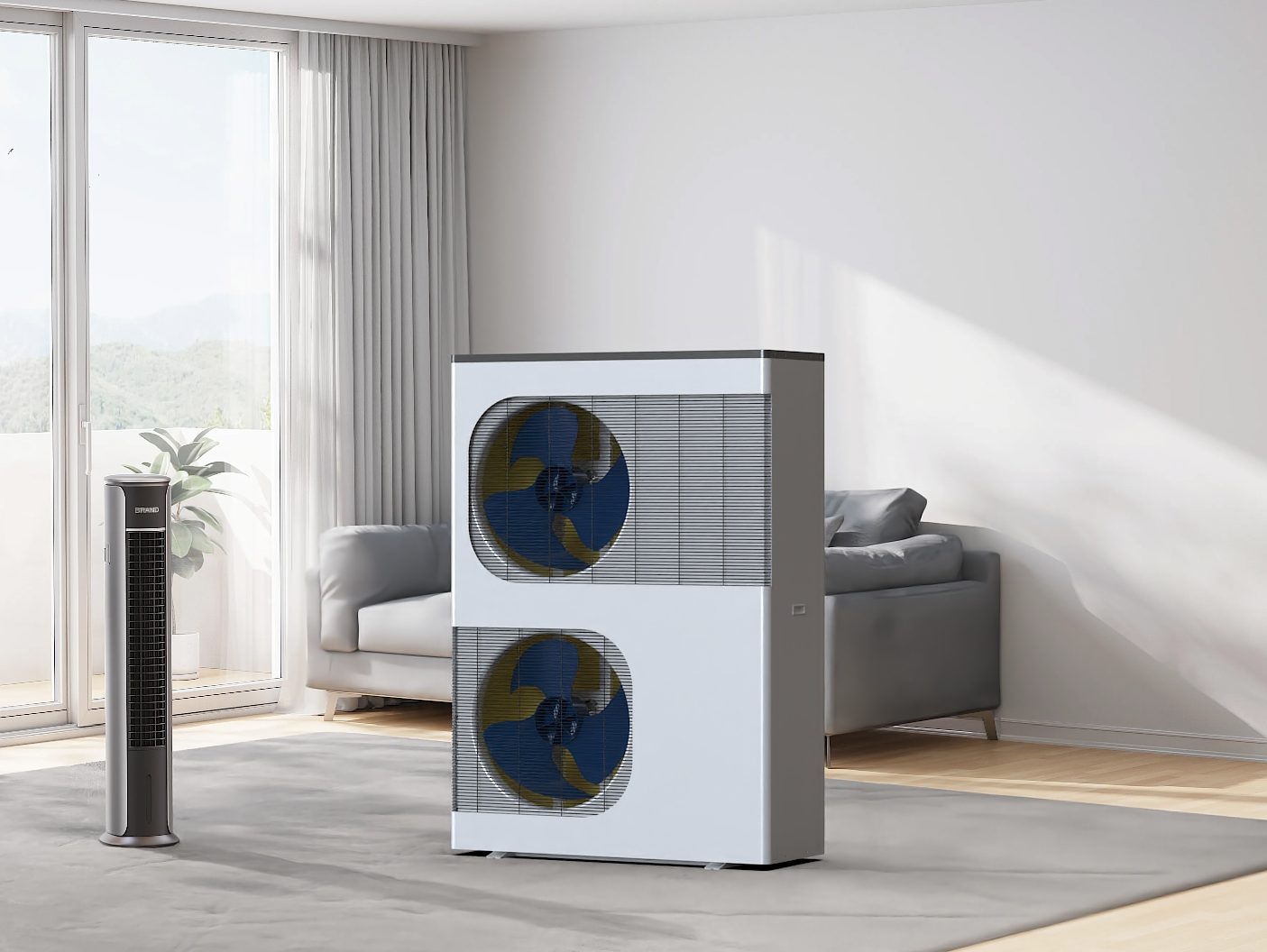

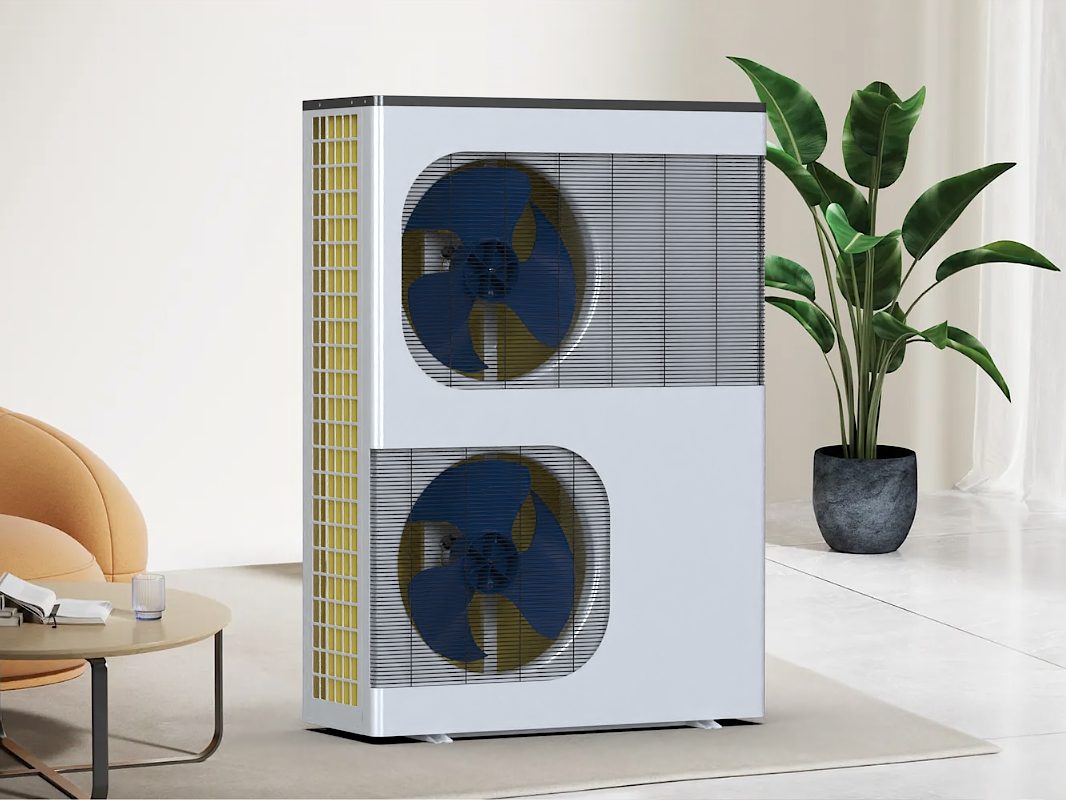

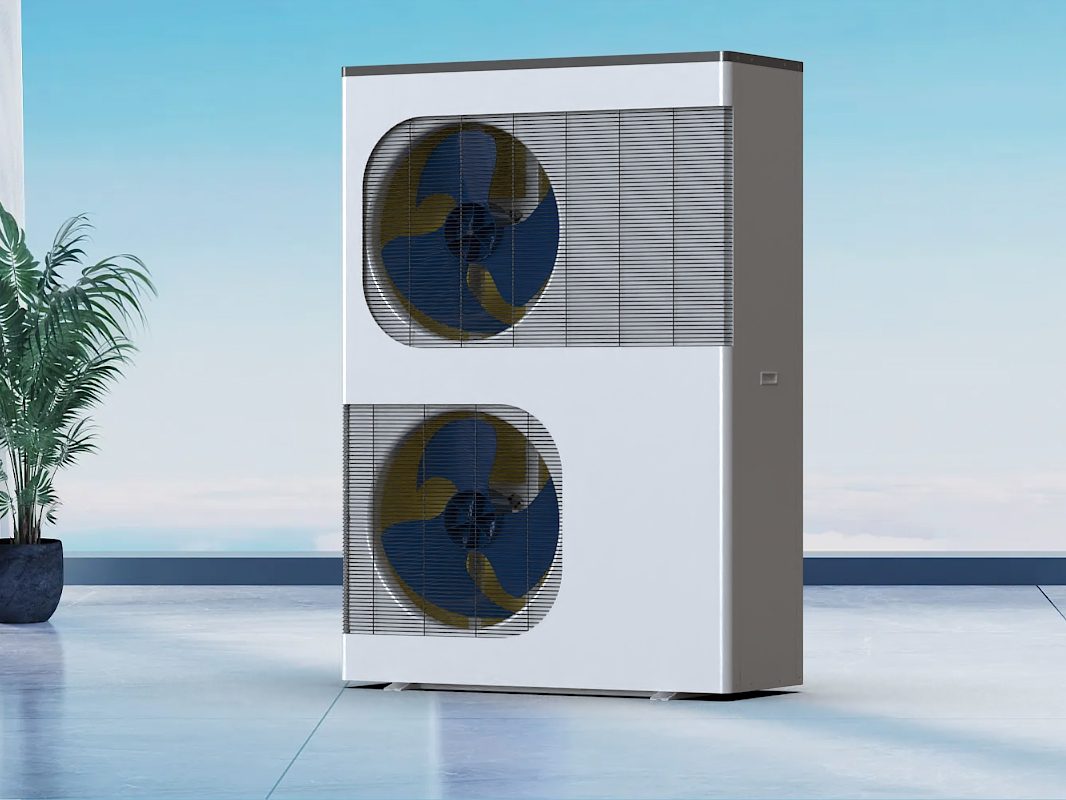

AH16DCR-290DC-A
R290ASHP efficiency meets sustainability. 14825 approval.GWP=3. Erp A+++ level, save up70% on energy costs. High temp.up to 75℃.Operates stably even at -25℃in extreme cold. Support SG Ready and PV Ready system to reduce costs. Real Multilingual HMI controller with advanced function for seamless control. Real-time energy management provide data to optimize energy usage and costs. Smart WI-FI remote control monitor and manage your heat pump anytime and anywhere.
CATEGORY:R290 Heat Pump Series

·5 Working Modes

Mode 1 Domestic Hot Water(DHW): Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.

Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.

Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.

Mode 4 DHW + House Cooling: Meet the Requirements of Both Domestic Hot Water and Air Conditioning.

Mode 5 DHW + House Heating: Meet the Requirements of Both Domestic Hot Water and Room Heating.

·Smart WIFI APP

The intelligent multilingual controller with RS485 communication is used to enable linkage control between the heat pump unit and the terminal device. With the cascade function, multiple heat pumps can be controlled simultaneously, enhancing overall operational efficiency. Additionally, the WIFI app allows users to control the system via their smartphones anytime and anywhere.

·Multi-language Controller

Our Multi-language Smart Control HMI offers powerful features and customizations with your logo. It tracks real-time data on capacity, input power, COP, and water flow, and monitors energy usage (daily, weekly, monthly, and annual). View detailed tables for 24-hour and hourly heating/cooling capacity and consumption, as well as annual histograms. The 4-section timing setting saves costs, with SG Ready function enabled and built-in Wi-Fi for easy connectivity.

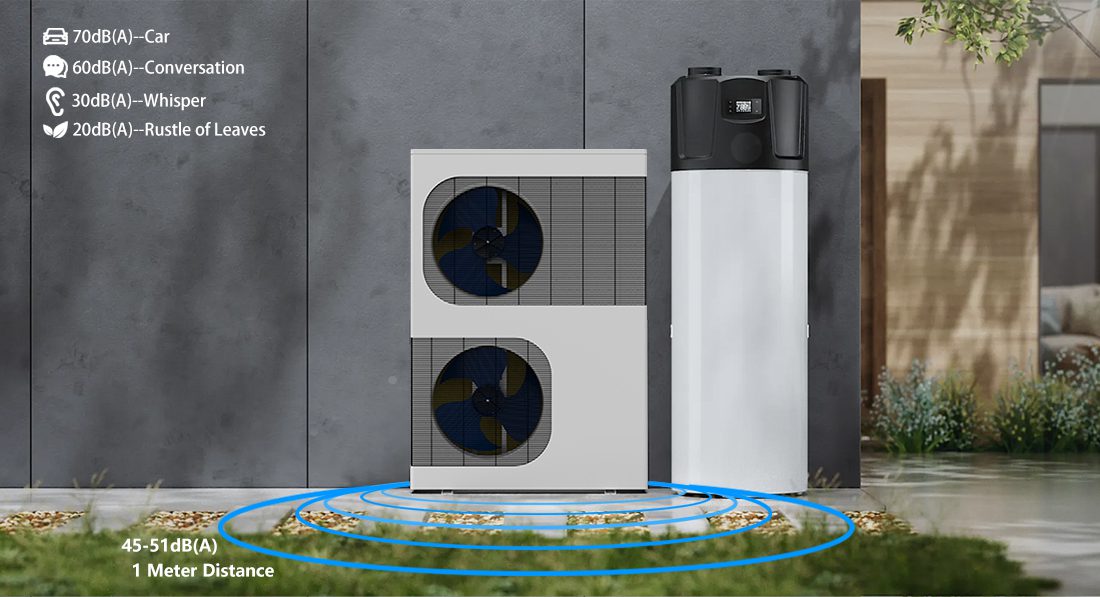

·Low Noise Reduction

·Max Outlet Water Temp Up to 75℃

·DC Inverter Technology

·Applications

Villas/Hotel/Swimming Pool/Bathroom etc…



Palm, your best partner!!!

Pefessional for a comfortable life.

PALM R290 Full DC Inverter Heat Pump Specification
Model：PAL30/AH9DCR-HTAH11DCR-HTPAL40/AH12DCR-HTAH14DCR-HTPAL60/AH16DCR-HTAH19DCR-HT
Rated voltage /FrequencyV/Hz220~240/50
Heating Capacity RangekW2-112-113-143-144-194-19
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 7℃;
Heating Capacity kW9.310.7812.4 13.7 16.1 19.31
Power InputkW1.92 2.4152.52 2.92 3.34 4.21
CurrentA8.3110.7111.7012.9513.8318.32
COPW/W4.854.474.934.714.834.58
SCOP(Average climate 35°C)KWh/KWh5.064/A+++5.064/A+++4.99/A+++4.99/A+++5.239/A+++5.239/A+++
Heating condition:water inlet/outlet temperature: 47℃/55℃, Ambient temperature: 7℃/6℃;
Heating Capacity kW8.72 8.72 11.68 11.68 16.15 16.15
Power InputkW2.78 2.78 3.85 3.85 5.21 5.21
COPW/W3.143.143.043.043.103.10
SCOP(Average climate 55°C)KWh/KWh3.737/A++3.737/A++3.597/A++3.597/A++3.917/A+++3.917/A+++
Cooling condition:water inlet/outlet temperature: 23℃/18, Ambient temperature: 35℃/24℃;
Cooling Capacity kW9.10 9.10 12.07 12.07 15.04 15.04
Power InputkW2.28 2.28 2.83 2.83 3.76 3.76
EERW/W3.993.994.274.274.004.00
SEERFan coil application(7°C)KWh/KWh4.474.474.424.424.614.61
Cooling floor application(18°C)KWh/KWh6.176.174.426.256.996.99
Rated water flowm3/h1.61.62.102.102.712.71
Maximum input powerkW3.503.504.704.706.606.60
Maximum input currentA16A16A21.5A21.5A30.030.0
Refrigerant/R290R290R290R290R290R290
Air flowm3/h400040006000600080008000
Brand of Water pumpWILO or SHIMGE
Defrost/4 way valve
Waterproof grade/IPX4
Noise pressure (at 1m)dB(A)464647475151
Max water outlet temperature°C757575757575
Min/Max outdoor air(heating mode)°C-25/45-25/45-25/45-25/45-25/45-25/45
Min/Max outdoor air(cooling mode)°C15/4515/4515/4515/4515/4515/45
Net Dimensions ( L/W/H )mm1106/450/8351106/450/8351112/422/9821112/422/9821106/450/16031106/450/1603
Package Dimensions ( L/W/H )mm1150/500/9401150/500/9401150/500/10951150/500/10951150/455/16711150/455/1671
Model：AH6DCR-HTPAL40-S/AH12DCR-HT-SAH14DCR-HT-SPAL60-S/AH16DCR-HT-SAH19DCR-HT-S
Rated voltage /FrequencyV/Hz220~240/50380~415/50
Heating Capacity RangekW1.5-73-143-144-194-19
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 7℃;
Heating Capacity kW6.212.4 13.7 16.1 19.31
Power InputkW1.312.52 2.92 3.34 4.21
CurrentA5.613.904.324.616.11
COPW/W4.734.934.714.834.58
SCOP( Average climate 35°C )KWh/KWh4.71/A+++4.99/A+++4.99/A+++5.239/A+++5.239/A+++
Heating condition:water inlet/outlet temperature: 47℃/55℃, Ambient temperature: 7℃/6℃;
Heating Capacity kW6.111.68 11.68 16.15 16.15
Power InputkW2.073.85 3.85 5.21 5.21
COPW/W2.953.043.043.103.10
SCOP( Average climate 55°C )KWh/KWh3.71/A++3.597/A++3.597/A++3.917/A+++3.917/A+++
Cooling condition:water inlet/outlet temperature: 23℃/18, Ambient temperature: 35℃/24℃;
Cooling Capacity kW6.312.07 12.07 15.04 15.04
Power InputkW1.622.83 2.83 3.76 3.76
EERW/W3.894.274.274.004.00
SEERFan coil application(7°C )KWh/KWh4.514.424.424.614.61
Cooling floor application(18°C )KWh/KWh6.356.256.256.996.99
Rated water flowm3/h1.12.102.102.712.71
Maximum input powerkW2.204.704.706.606.60
Maximum input currentA12.07A7A10A10A
Refrigerant/R290R290R290R290R290
Air flowm3/h35006000600080008000
Brand of Water pump/WILO or SHIMGE
Defrost/4 way valve
Waterproof grade/IPX4
Noise pressure ( at 1m)dB(A)45475151
Max water outlet temperature°C75
Min/Max outdoor air (heating mode )°C-25/45
Min/Max outdoor air (cooling mode )°C15/45
Net Dimensions ( L/W/H )mm1106/450/8351112/422/9821112/422/9821106/450/16031106/450/1603
Package Dimensions ( L/W/H )mm1150/500/9401150/500/10951150/500/10951150/500/17081150/455/1708
