AH12DCR-32DC-CX

R32 ASHP Inverter-driven precise temp. control, Ultra-low temperature heating at -25°C.Support SG Ready and PV Ready system to reduce costs. Real Multilingual HMI controller with advanced function for intuitive operation. Real-time energy management provide data to optimize energy usage and costs .Smart WIFI APP predictive heating/cooling, remote control to pre-warm or pre-cool in advance. Save energy, save money, and conserve Earth's resources!

CATEGORY:R32 Heat Pump Series

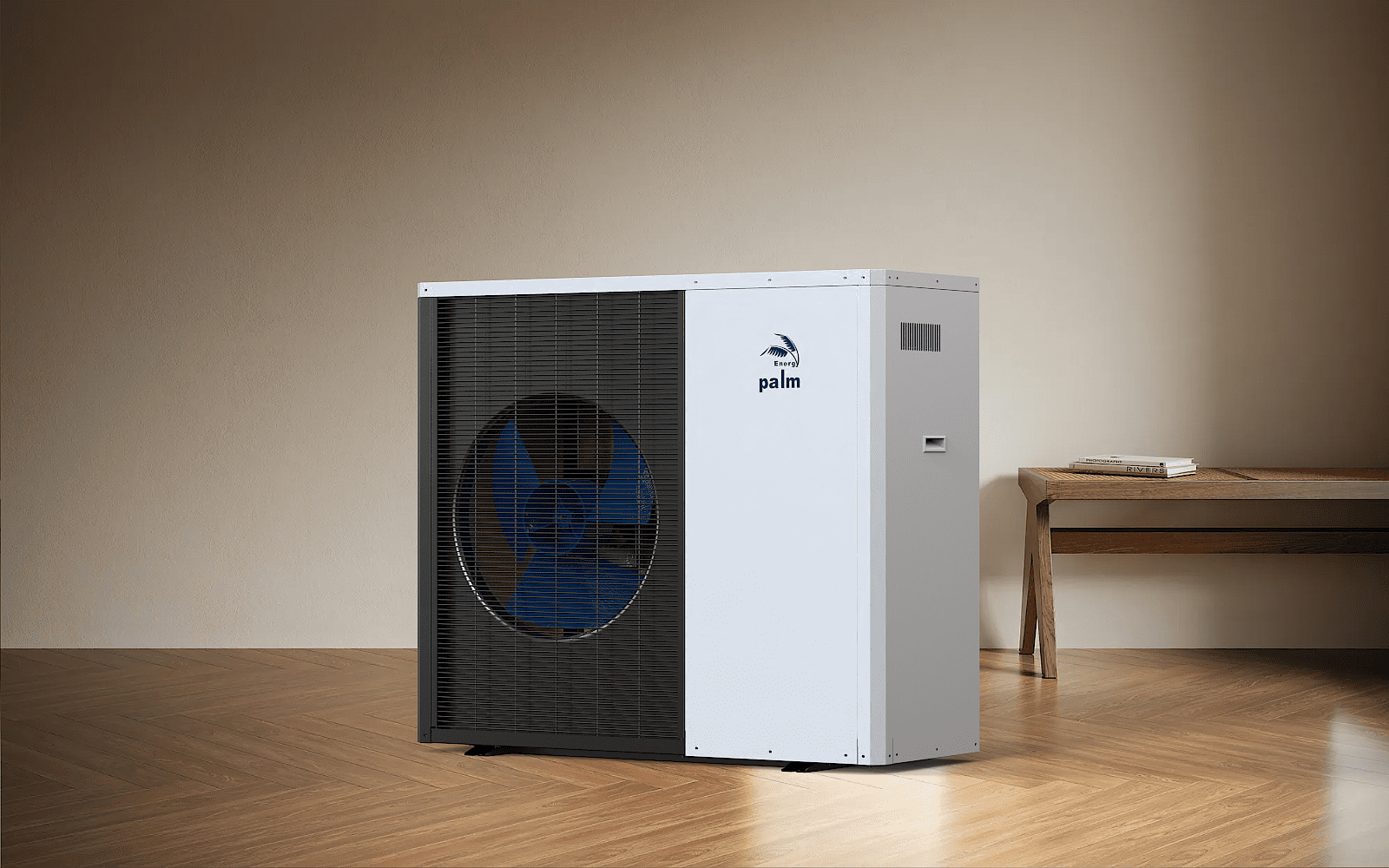

·Product Image

·Advantages

1.High Efficiency A+++ Level

2.Multi-language HMI

3.Support WIFI APP Controller

4.Max Water Temp Up to 65℃

5.DC Inverter Technology

·Five Working Modes

·Applications

Swimming Pool / Hotel / Flat / Household etc…

Palm, Be your best Friend!!!


R32 DC inverter Air to Water Heat Pumps Specification
Models				AH6DCR-P32	AH9DCR-P32	AH12DCR-P32	AH14DCR-P32	AH16DCR-P32	AH19DCR-P32
Electric supply			V/Hz	230V/50-60Hz
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 20℃;
Heating capacity			KW	8.44	12.1	16.32	18.76	21.88	25.4
Power input			KW	1.41	2.02	2.77	3.47	3.66	4.5
COP			W/W	5.99	5.99	5.89	5.41	5.98	5.64
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 7℃;
Heating capacity			KW	6.21	8.9	12	13.9	16.3	18.936
Power input			KW	1.26	1.81	2.5	3.13	3.34	4.265
COP			W/W	4.93	4.92	4.8	4.44	4.88	4.44
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 7℃;
Heating capacity			KW	5.91	8.46	11.29	13.11	15.31	17.78
Power input			KW	1.48	2.12	3.08	3.67	3.88	4.75
COP			W/W	3.99	3.99	3.67	3.57	3.95	3.74
Heating condition:water inlet/outlet temperature: 35℃, Ambient temperature: 2℃;
Heating capacity			KW	5.56	7.97	10.8	12.42	14.49	16.8
Power input			KW	1.22	1.76	2.44	3.06	3.23	3.97
COP			W/W	4.56	4.53	4.43	4.06	4.49	4.23
Heating condition:water inlet/outlet temperature: 45℃, Ambient temperature: 2℃;
Heating capacity			KW	5.32	7.61	10.16	11.8	13.78	16
Power input			KW	1.45	2.07	3.01	3.6	3.8	4.65
COP			W/W	3.67	3.68	3.38	3.28	3.63	3.44
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacity			KW	6.1	8.1	11.2	11.3	15.6	16.6
Power input			KW	1.53	2.08	3.01	3.08	4.3	4.55
COP			W/W	3.99	3.89	3.72	3.67	3.63	3.65
Cooling condition:water inlet/outlet temperature: 18℃, Ambient temperature: 35℃;
Cooling capacity			KW	4.9	5.9	8.1	9.5	11.4	12
Power input			KW	1.65	2	2.83	3.7	4	4.2
COP			W/W	2.97	2.95	2.86	2.57	2.85	2.86
SCOP			/	4.65	4.65	4.69	4.69	4.55	4.55
Compressor			/	Mitsubishi
Max.currentt			A	12.5			15			25
Max.water temperature			℃	60
Running temperature range			℃	-25 ~ 43
Refrigerant circuit	compressor(s)	/	Twin Rotary
		Heat exchange	/	Copper and Hydrauphilic Aluminum Fin
		Air flow	m³/h	2100	2400	2900	3100	5600	5600
Water circuit	Heat exchanger	/	Plate heat exchanger
		In/Out pipe	/	DN25(1'')	DN25(1'')			/	DN32
		Water flow	m³/h	≥0.8	≥1.2	≥1.8	≥2.0	≥2.3	≥2.3
		permitted pressure	/	≤0.8MPa
Net weight			kg	90	90	105	110	140	140
Gross weight			kg	102	102	115	120	150	150

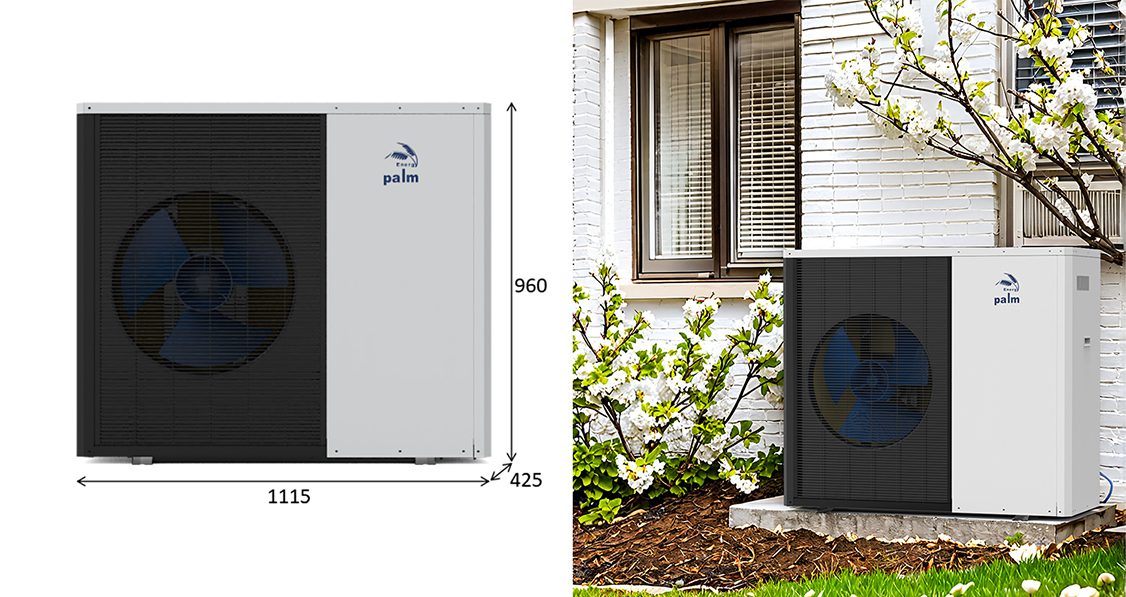

Unit dimensions(WHD)			mm	1115710425			1115960425			11151280425
Pacage dimensions(WHD)			mm	1160860520			11601110520			11601440520
Noise level			dB(A)	46	46	50	52
Loading quantity for 20'/40'			/	44/88							22/44

The above modle is optional for multifunction (Room heating, cooling and domestic hot water in one solution) with extra cost of USD100.
